Tesla

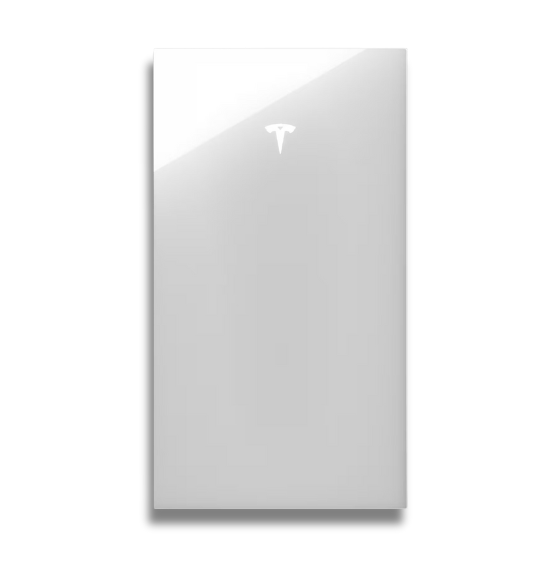

Powerwall 3 Expansion Unit
Save $1,825.84
Unit price /
Unavailable
Powerwall 3 Expansion Unit is backordered and will ship as soon as it is back in stock.
Shipping
Shipping
Overview
To order the Tesla Powerwall 3 Expansion battery, you must complete Powerwall training.
- For Powerwall training, please visit the Qmerit Resource Center.
- For Powerwall installation instructions, please visit the Qmerit Resource Center.
Product Information
Powerwall 3 expansion unit is for connection with a Tesla Powerwall 3 (Model #: 1707000-XX-Y) Leader and cannot be used as a stand-alone unit
- Each expansion unit will add an additional 13.5kWh of storage capacity.
- The Powerwall 3 connected to the Backup Switch via 12V / CAN communication wiring is designated as the Leader Powerwall 3. The other units are designated as Follower units.
- You can install a maximum of (3) Powerwall 3 Expansion units to a Leader Powerwall 3.
Charging Reference Table
| EV Charger Amps | EV Charger Output | Minimum Breaker | Full Charge | Driving Range Added Per Hour |
|---|---|---|---|---|
| 16 Amps | 3.8 kW | 20 Amps | 16 to 23 hours | 11 to 13 miles |
| 24 Amps | 5.8 kW | 30 Amps | 10 to 16 hours | 17 to 19 miles |
| 32 Amps | 7.7 kW | 40 Amps | 8 to 12 hours | 22 to 25 miles |
| 40 Amps | 9.6 kW | 50 Amps | 6 to 9 hours | 26 to 28 miles |
| 48 Amps | 11.5 kW | 60 Amps | 5 to 8 hours | 28 to 30 miles |
| 50 Amps | 12.0 kW | 80 Amps | 5 to 8 hours | 28 to 31 miles |
