DCC
DCC-12 Gen 3
Save $159.00
Unit price /
Unavailable
DCC-12 Gen 3 - Buy 1 - $636/ea is backordered and will ship as soon as it is back in stock.
Shipping
Shipping
Overview
The DCC-12 is an Electric Vehicle Energy Management System (EVEMS) that allows a charger to be connected directly to an electrical panel which would otherwise not have sufficient capacity to allow the connection. The DCC-12 supports loads of up to 100A, making it ideal for powerful EV charging installations.
Operations
- Real-time reading of the total power consumption of the home’s electrical panel
- Detects when total power consumption exceeds 80% of main circuit breaker capacity and temporarily de-energizes the EV charger
- Automatically re-energizes the EV charger when the total power consumption of the electrical panel is less than 80% of its capacity for more than 15 minutes
- Requires one double pole breaker slot available in a panel
Features
- Does not affect load calculation of a panel
- Automatic billing of electricity by the utility
- Can be wall or ceiling mounted
- NEMA 3R enclosure for outdoor and indoor installation
- Possibility to receive and transmit load shedding instructions from an external energy management system via a dry contact input and output

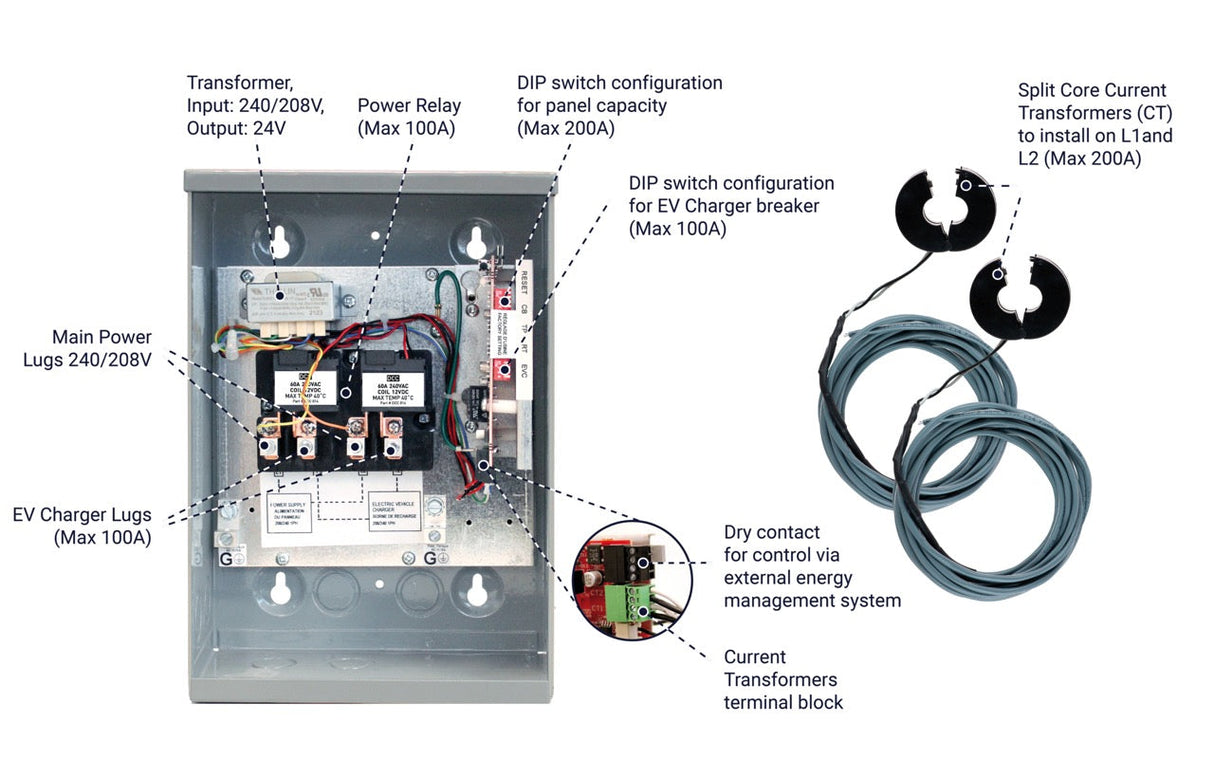

Included
- Electric Vehicle Energy Management System
- Power Relay (Max 100A)
- 2 Split Core Current Transformers (CT)
- CT Opening: Up to 250 kcmil (MCM) CU/AL
Charging Reference Table
| EV Charger Amps | EV Charger Output | Minimum Breaker | Full Charge | Driving Range Added Per Hour |
|---|---|---|---|---|
| 16 Amps | 3.8 kW | 20 Amps | 16 to 23 hours | 11 to 13 miles |
| 24 Amps | 5.8 kW | 30 Amps | 10 to 16 hours | 17 to 19 miles |
| 32 Amps | 7.7 kW | 40 Amps | 8 to 12 hours | 22 to 25 miles |
| 40 Amps | 9.6 kW | 50 Amps | 6 to 9 hours | 26 to 28 miles |
| 48 Amps | 11.5 kW | 60 Amps | 5 to 8 hours | 28 to 30 miles |
| 50 Amps | 12.0 kW | 80 Amps | 5 to 8 hours | 28 to 31 miles |
