Tesla

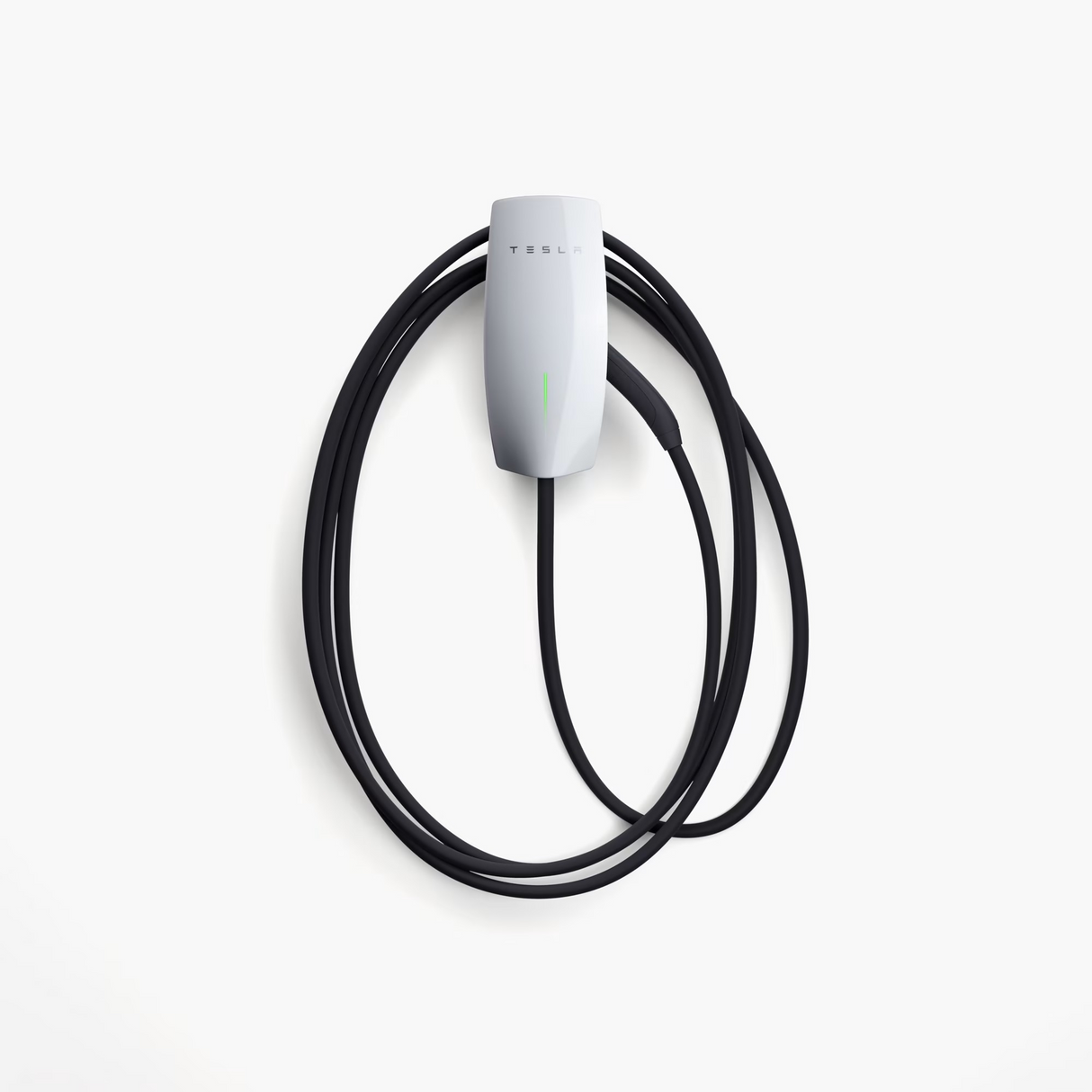

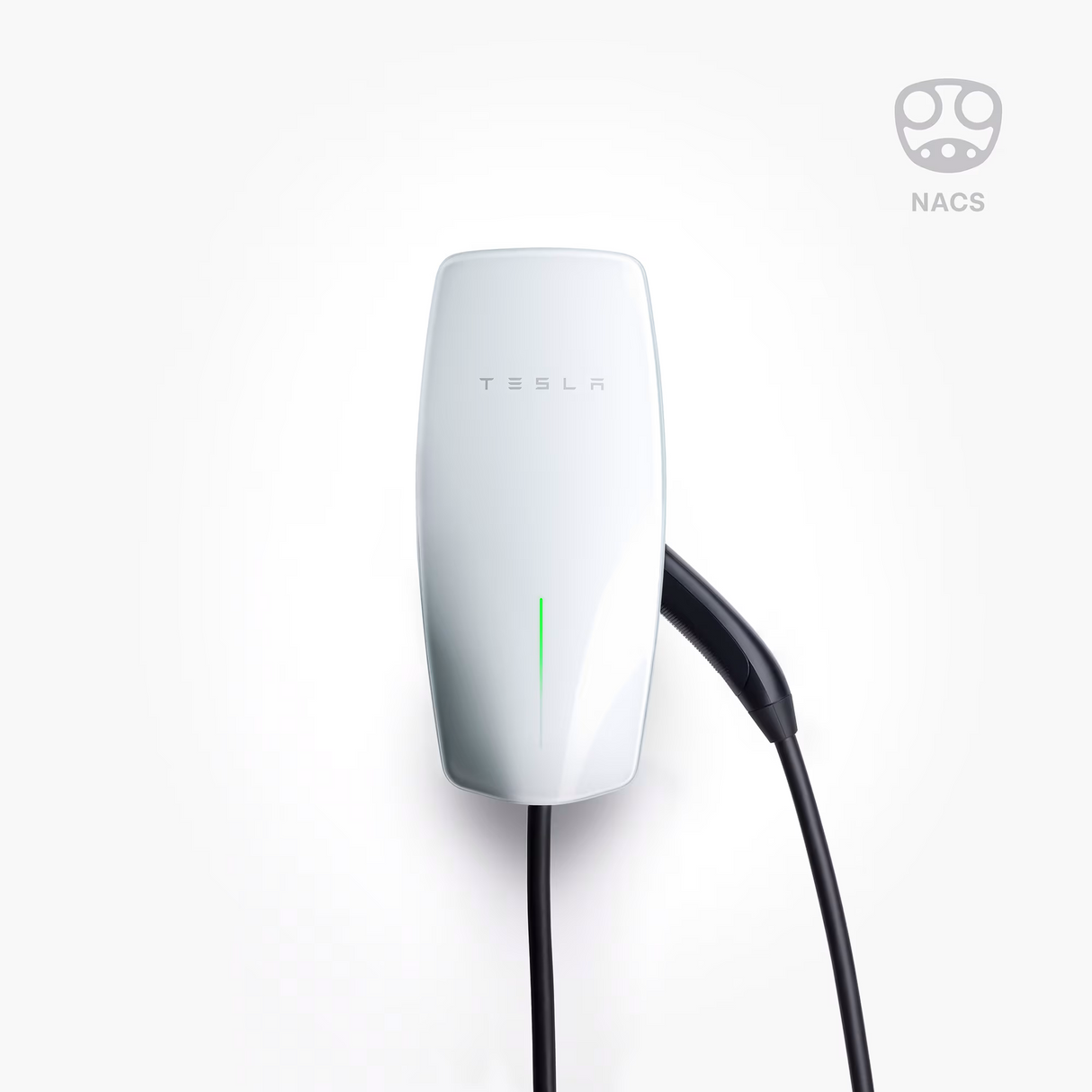

Wall Connector
NACS | Hardwired
Adjustable 12A-48A | 24 ft. cable
Save $1,245.00
Unit price /
Unavailable
Wall Connector is backordered and will ship as soon as it is back in stock.
Shipping
Shipping
Free Shipping
Overview
Wall Connector is the most convenient charging solution for houses, apartments, hospitality properties, and workplaces.
Features
- Up to 44 miles of range added per hour at 11.5 kW / 48 amp output
- Auto-sensing handle to open charge port
- Monitor and manage your charging schedule and usage from the Tesla app
- Wi-Fi connectivity for over-the-air updates, remote diagnostics, and access controls
- Versatile indoor / outdoor design
- Minimize install costs and maximize charging speed using Power Management features
- 24-foot cable length
- Four-year warranty for residential use
Charging Reference Table
| EV Charger Amps | EV Charger Output | Minimum Breaker | Full Charge | Driving Range Added Per Hour |
|---|---|---|---|---|
| 16 Amps | 3.8 kW | 20 Amps | 16 to 23 hours | 11 to 13 miles |
| 24 Amps | 5.8 kW | 30 Amps | 10 to 16 hours | 17 to 19 miles |
| 32 Amps | 7.7 kW | 40 Amps | 8 to 12 hours | 22 to 25 miles |
| 40 Amps | 9.6 kW | 50 Amps | 6 to 9 hours | 26 to 28 miles |
| 48 Amps | 11.5 kW | 60 Amps | 5 to 8 hours | 28 to 30 miles |
| 50 Amps | 12.0 kW | 80 Amps | 5 to 8 hours | 28 to 31 miles |
Downloads
