Emporia

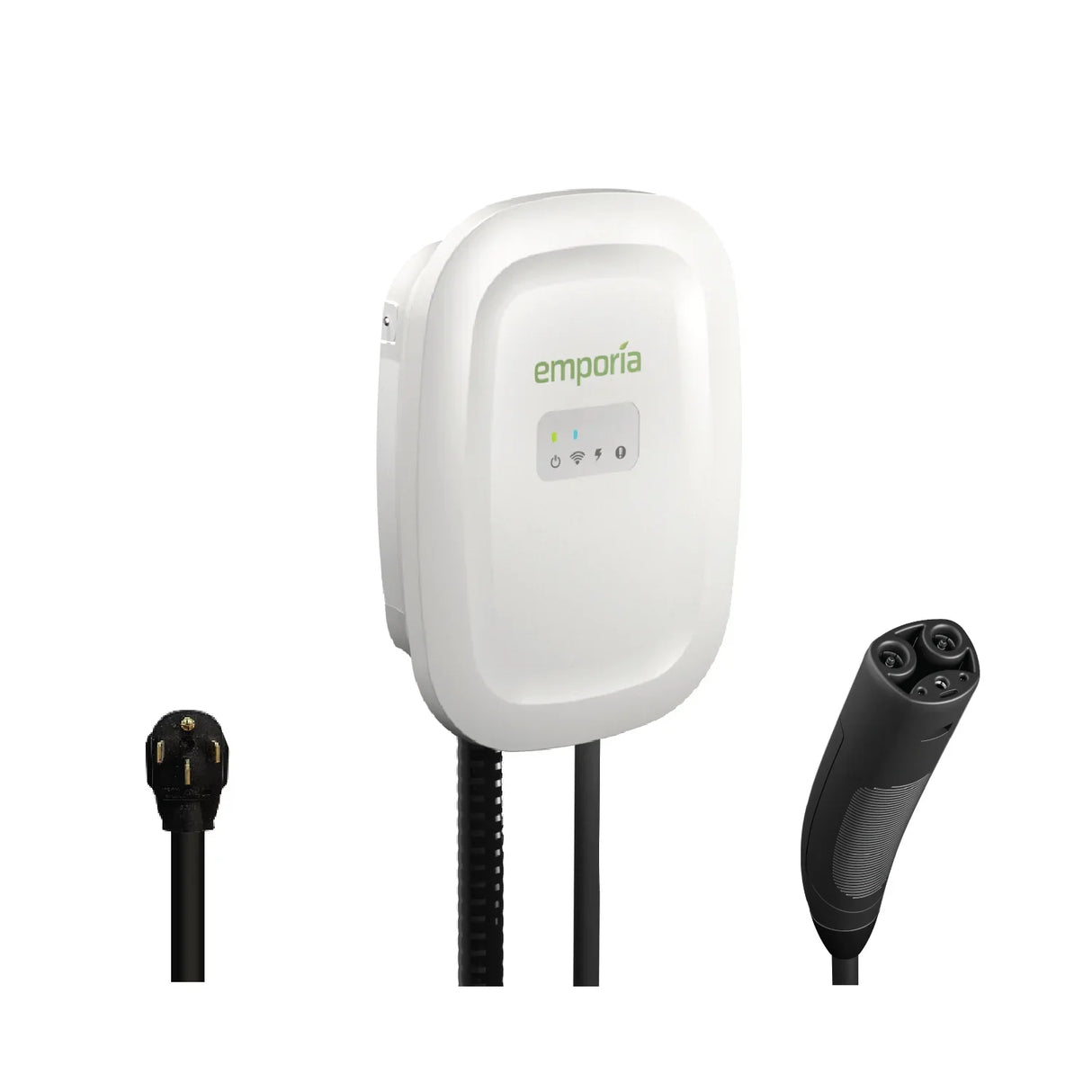

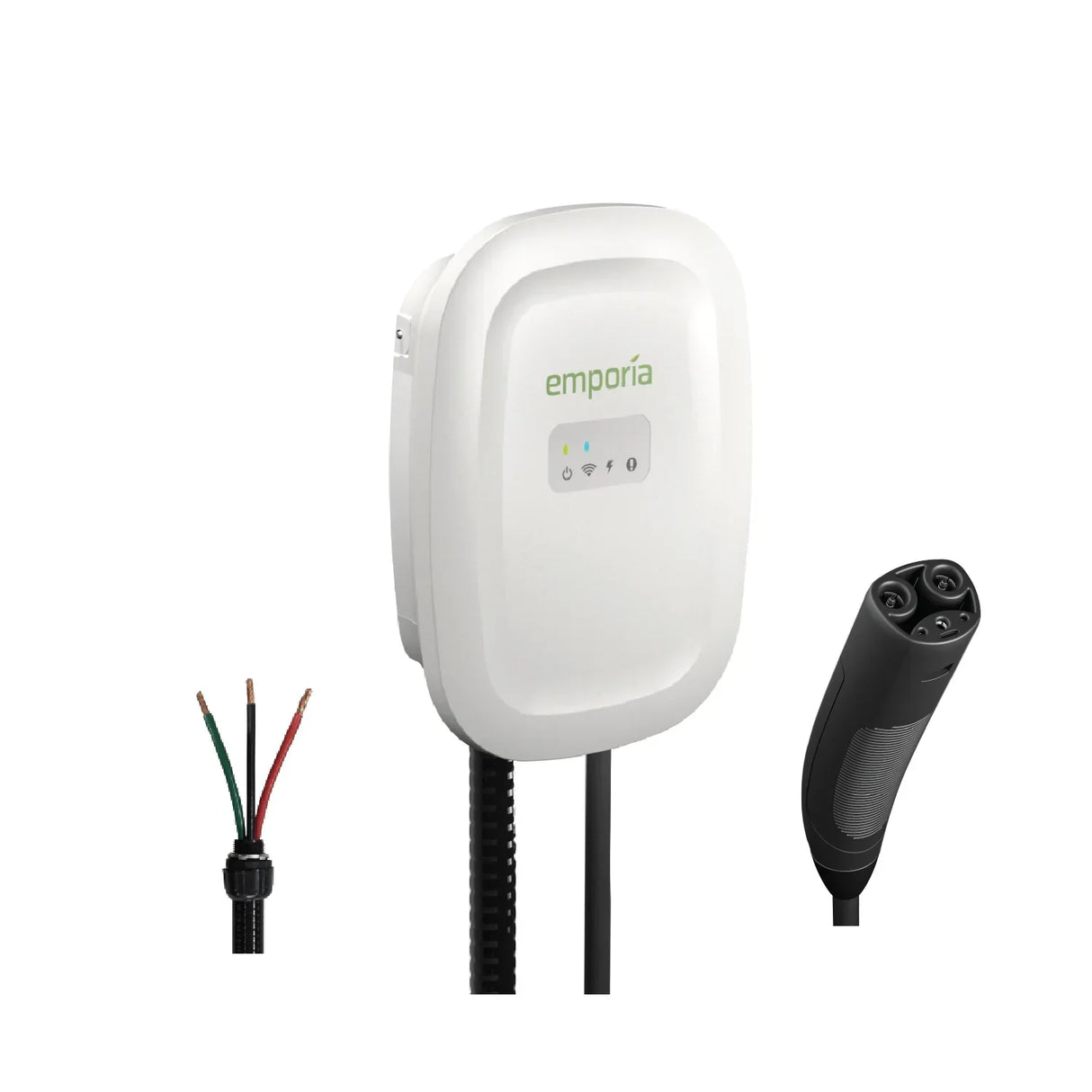

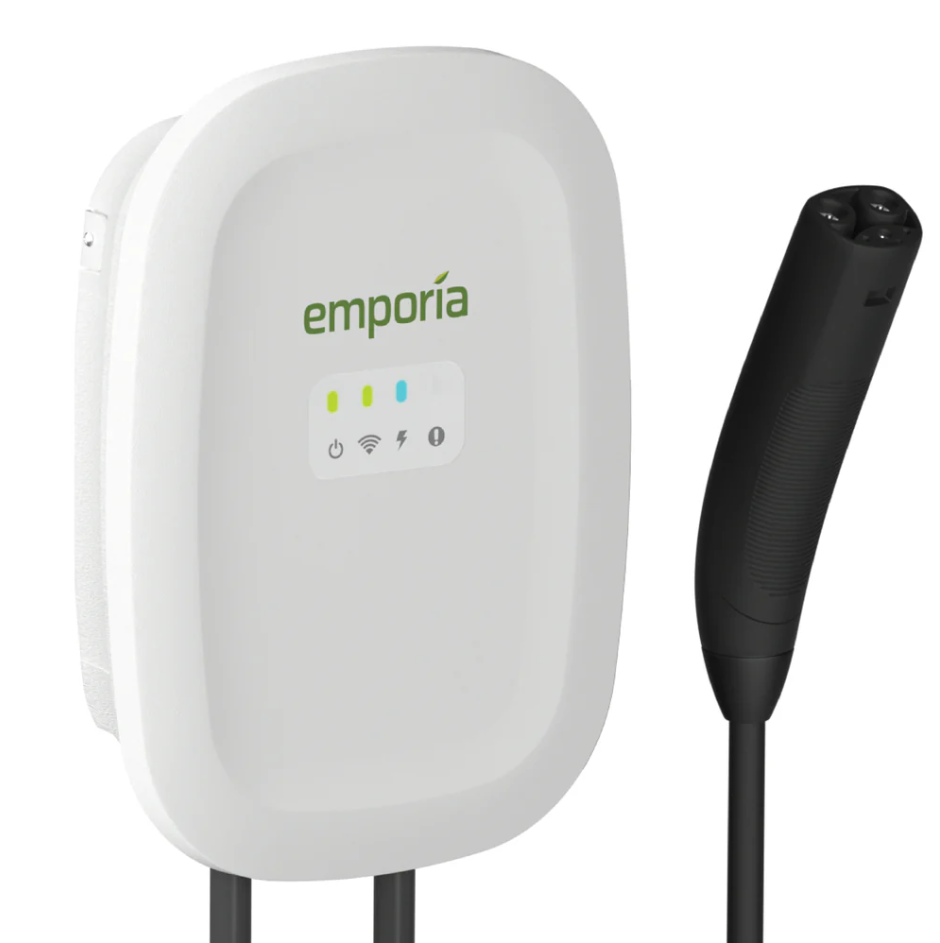

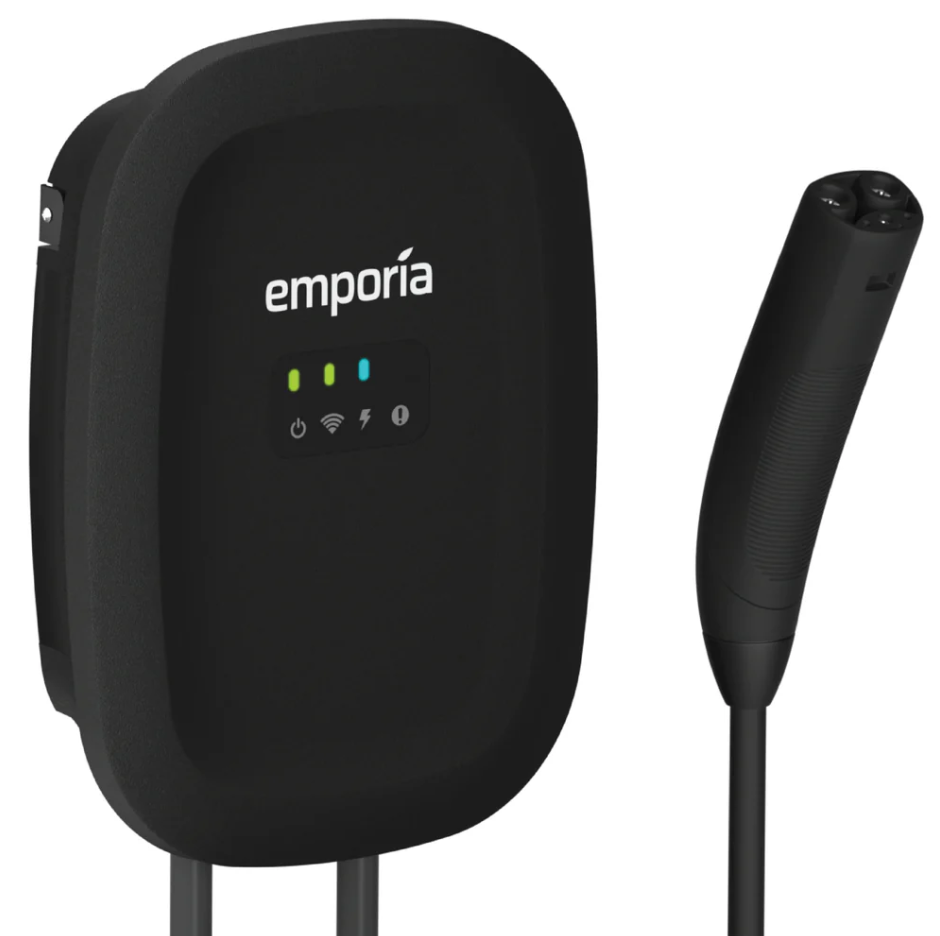

Classic EV Charger 48A NACS
NACS | Hardwired or 14-50 Plug
Adjustable 16A–48A | 24 ft. cable
Save $10.00
Unit price /
Unavailable
Classic EV Charger 48A NACS - White / Hardwired and 14-50 Plug is backordered and will ship as soon as it is back in stock.
Shipping
Shipping
Free Shipping
Overview
Adjustable Amp Charger
Adjustable Amp chargers can be adjusted to accommodate your available electrical capacity, reducing the need for electrical upgrades. Your electrical contractor can assess the maximum amperage your dedicated breaker can handle and can adjust the charger amperage accordingly during installation.
The Emporia Level 2 electric vehicle charger is consistently voted one of the best EV Chargers on the market.
Key Features:
- Adjustable output of 16, 24, 32, 40 or 48 Amps

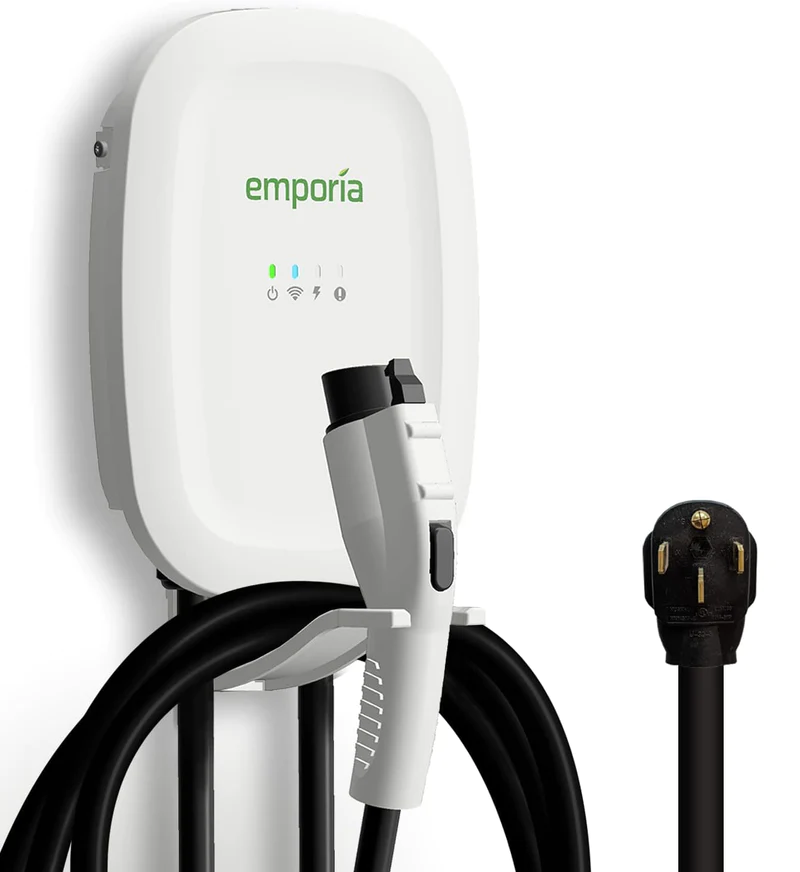

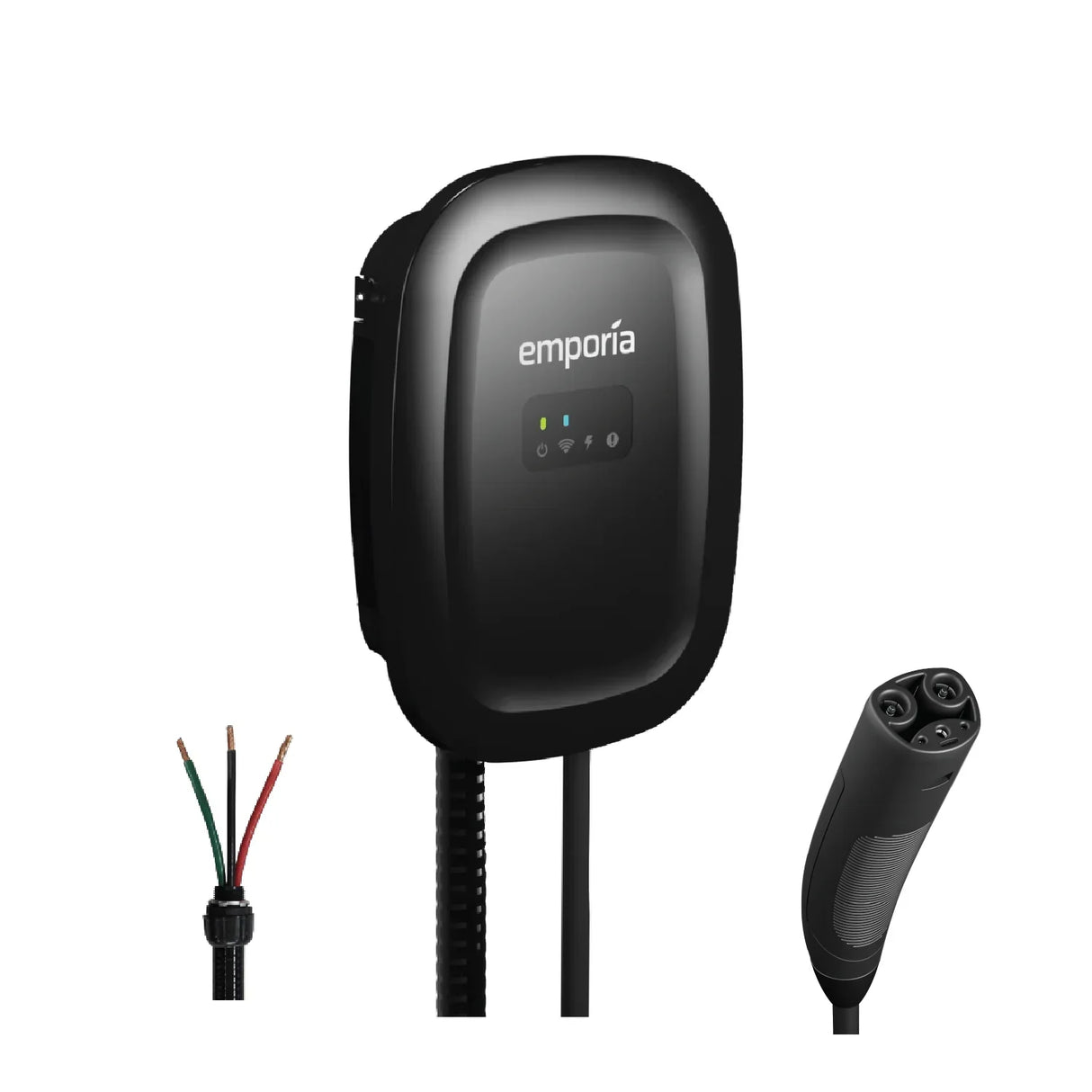

- Hardwire or NEMA 14-50 Plug electrical connection

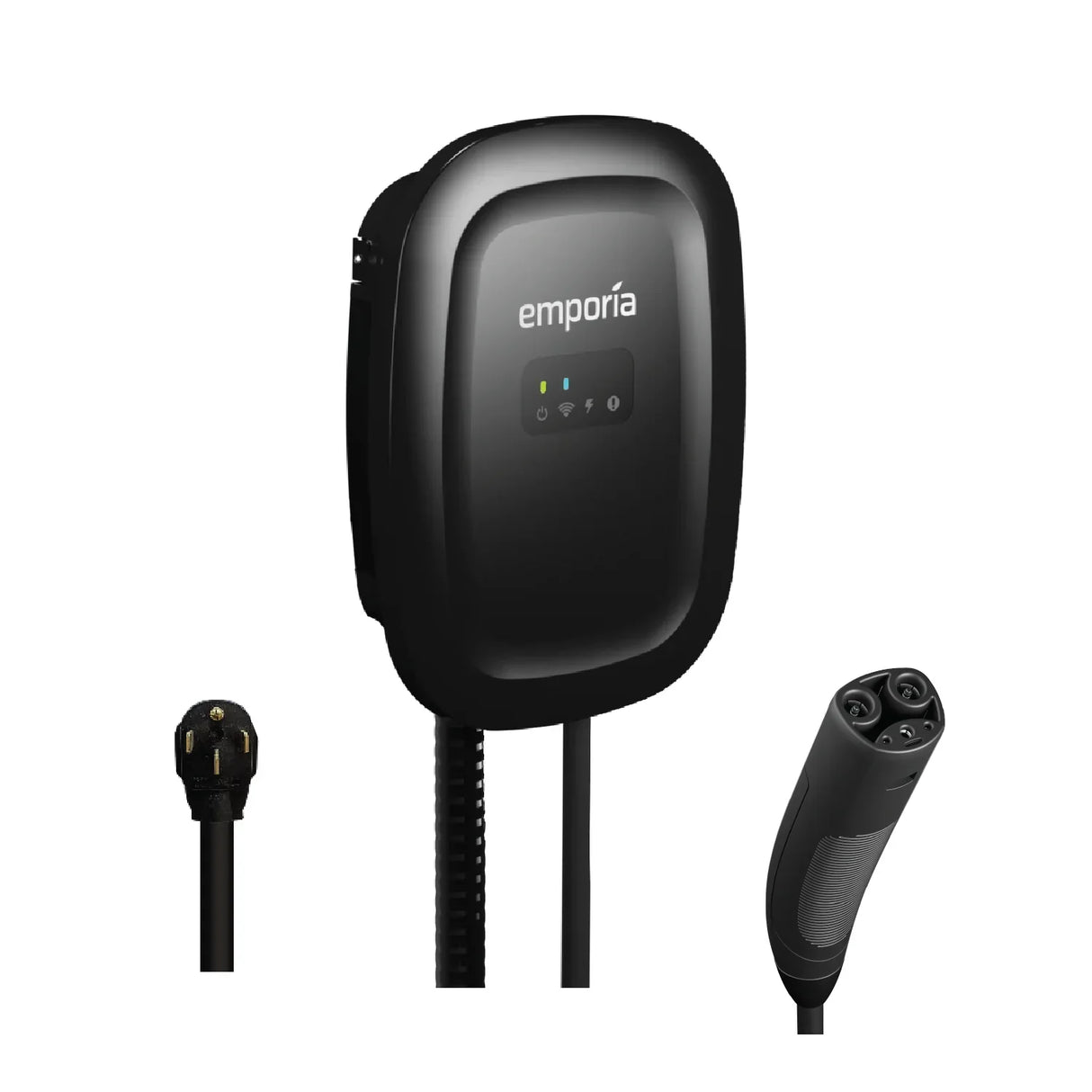

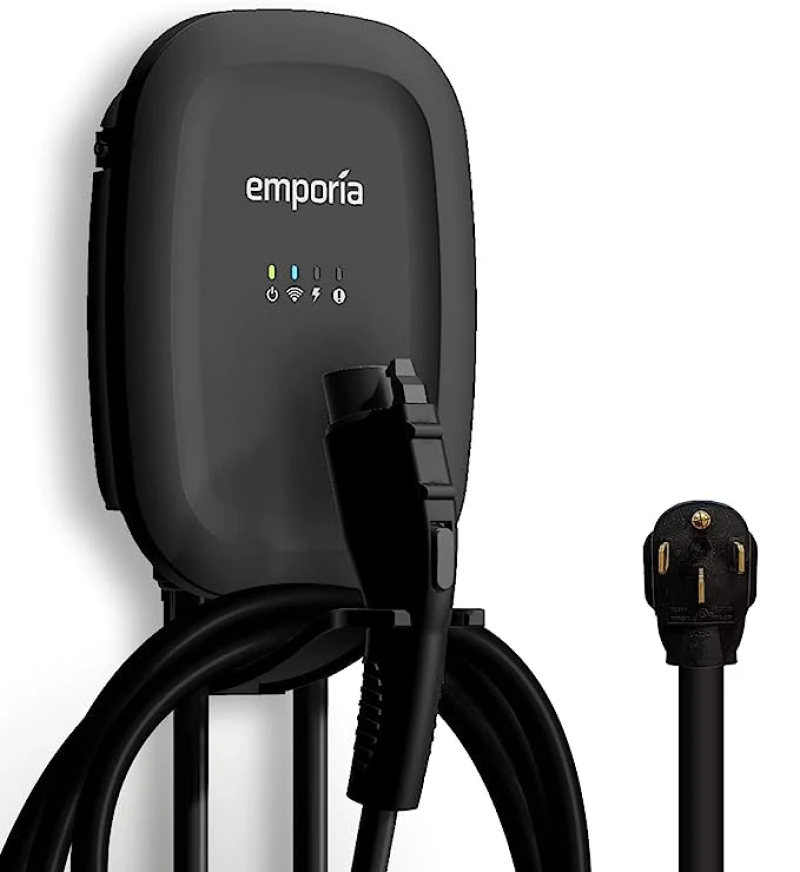

- Choose either white or black
- 3-year warranty
- UL-Listed and Energy Star certified
- Extra-long 24-foot charging cable and includes a J-Hook to keep your cable organized
- Watertight NEMA Type 4 enclosure means it can be installed indoors or outdoors

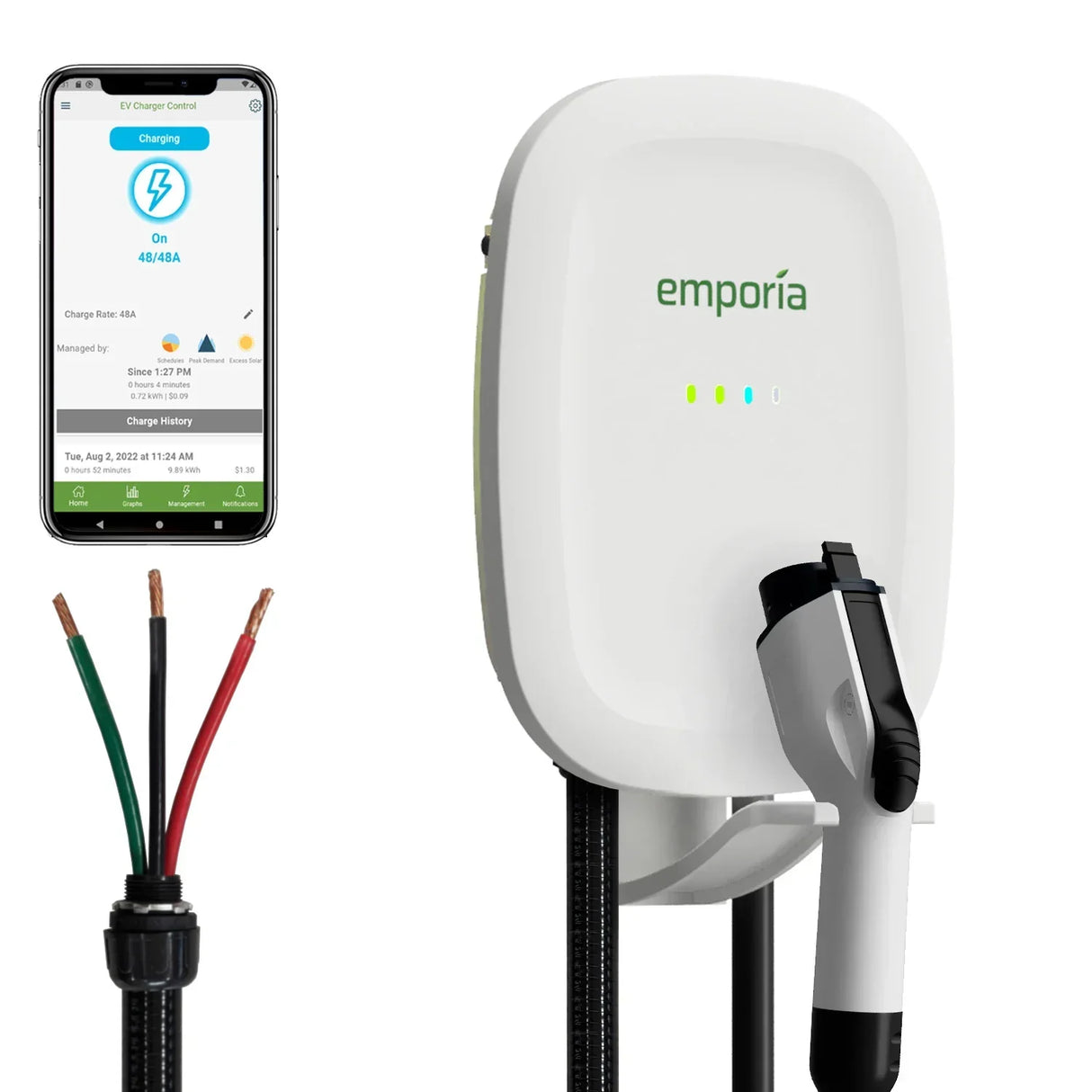

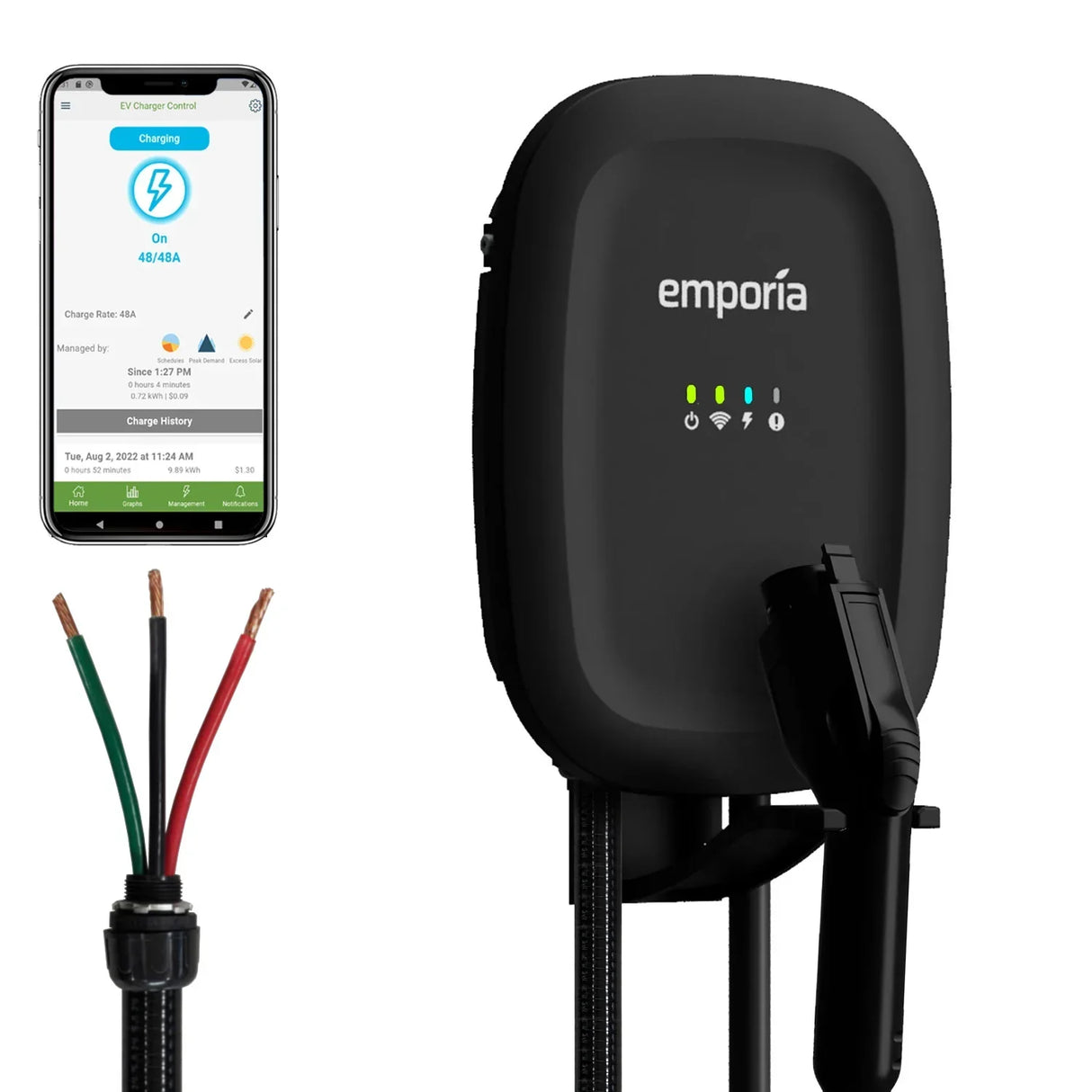

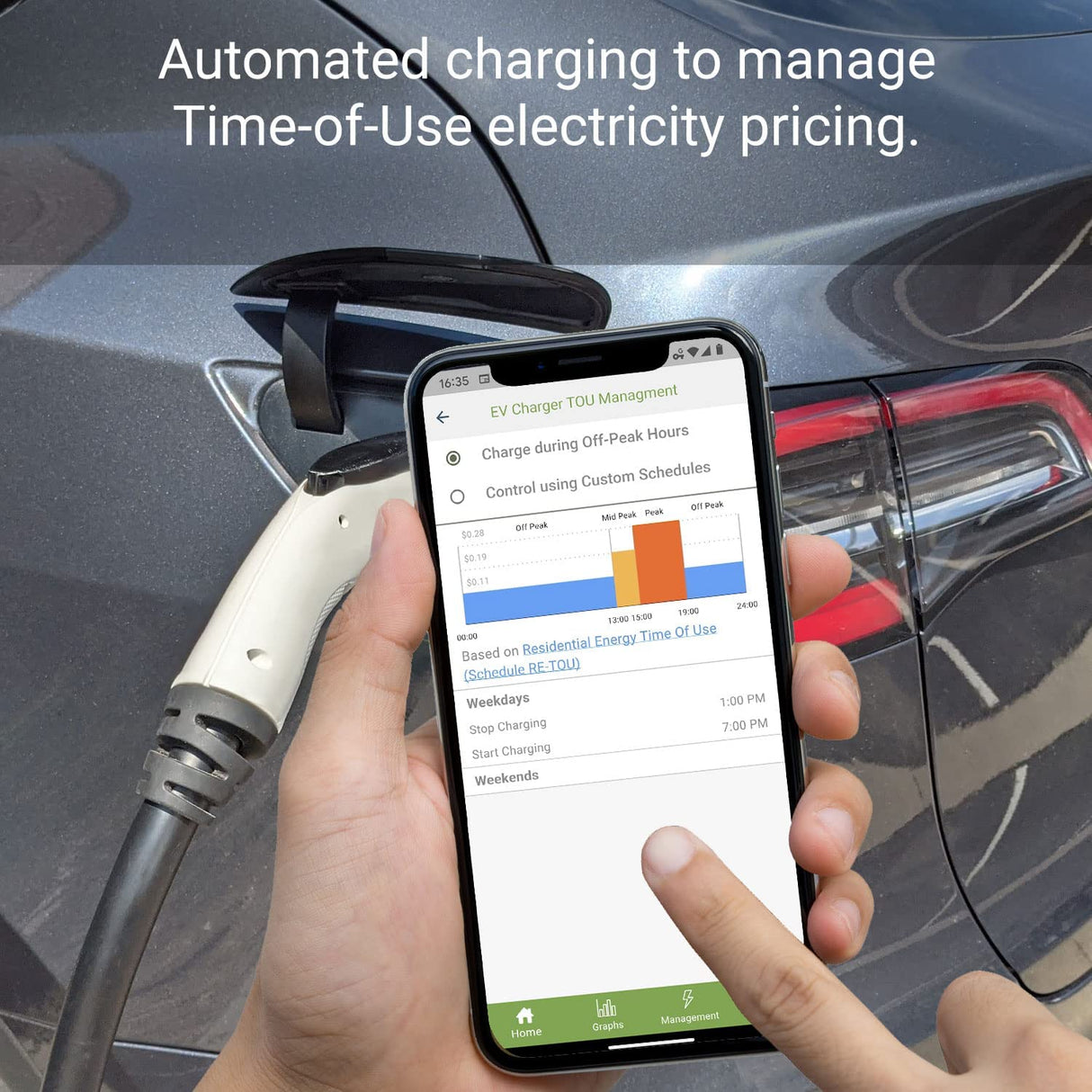

- Great mobile app - set a schedule to only charge when electricity is cheapest, set reminders so you never forget to plug in, and see all your Emporia charging data in one place
- Compatible with Tesla
Charging Reference Table
| EV Charger Amps | EV Charger Output | Minimum Breaker | Full Charge | Driving Range Added Per Hour |
|---|---|---|---|---|
| 16 Amps | 3.8 kW | 20 Amps | 16 to 23 hours | 11 to 13 miles |
| 24 Amps | 5.8 kW | 30 Amps | 10 to 16 hours | 17 to 19 miles |
| 32 Amps | 7.7 kW | 40 Amps | 8 to 12 hours | 22 to 25 miles |
| 40 Amps | 9.6 kW | 50 Amps | 6 to 9 hours | 26 to 28 miles |
| 48 Amps | 11.5 kW | 60 Amps | 5 to 8 hours | 28 to 30 miles |
| 50 Amps | 12.0 kW | 80 Amps | 5 to 8 hours | 28 to 31 miles |
