PSP

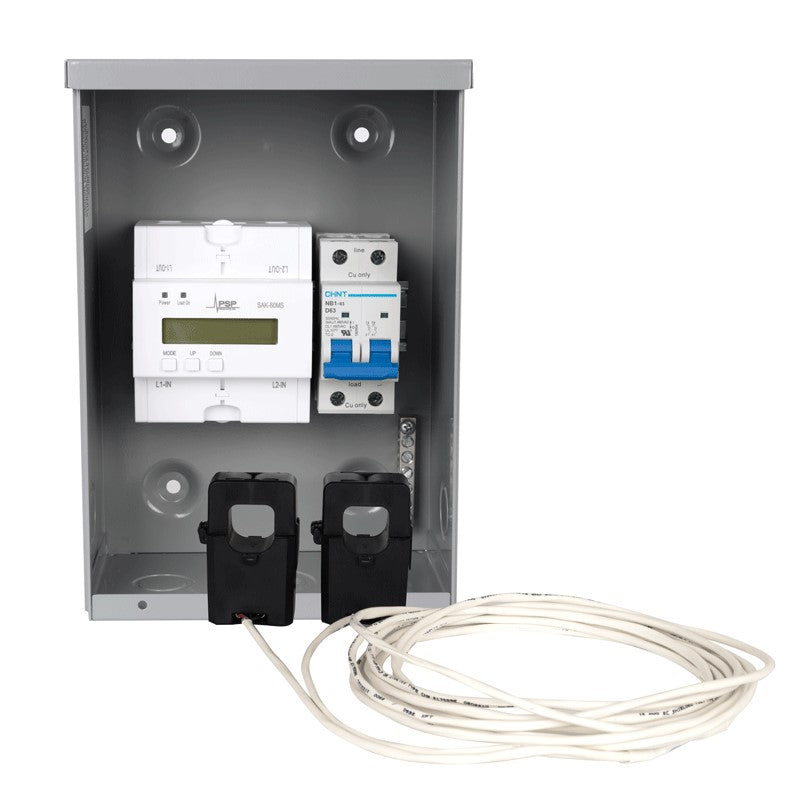

SAK-60MSD-M
Max 400A | Max 60A Load | Includes 1 - 40A-60A Breaker
NEMA 3R
Save $24.00
Unit price /
Unavailable
SAK-60MSD-M - 2P 40A Breaker is backordered and will ship as soon as it is back in stock.
Shipping
Shipping
Free Shipping
Overview
Allows loads up to 60A to be added to any main service panel or sub panel that is at risk of overload, or will become overloaded, when a new load is introduced.
The onboard intelligent micro-controller monitors the load on the existing panel and only allows the added load access to the panel when capacity is available. This product comes with one 40, 50, or 60A internal disconnect breaker.
Can be used in single phase commercial applications.
Charging Reference Table
| EV Charger Amps | EV Charger Output | Minimum Breaker | Full Charge | Driving Range Added Per Hour |
|---|---|---|---|---|
| 16 Amps | 3.8 kW | 20 Amps | 16 to 23 hours | 11 to 13 miles |
| 24 Amps | 5.8 kW | 30 Amps | 10 to 16 hours | 17 to 19 miles |
| 32 Amps | 7.7 kW | 40 Amps | 8 to 12 hours | 22 to 25 miles |
| 40 Amps | 9.6 kW | 50 Amps | 6 to 9 hours | 26 to 28 miles |
| 48 Amps | 11.5 kW | 60 Amps | 5 to 8 hours | 28 to 30 miles |
| 50 Amps | 12.0 kW | 80 Amps | 5 to 8 hours | 28 to 31 miles |
