PSP

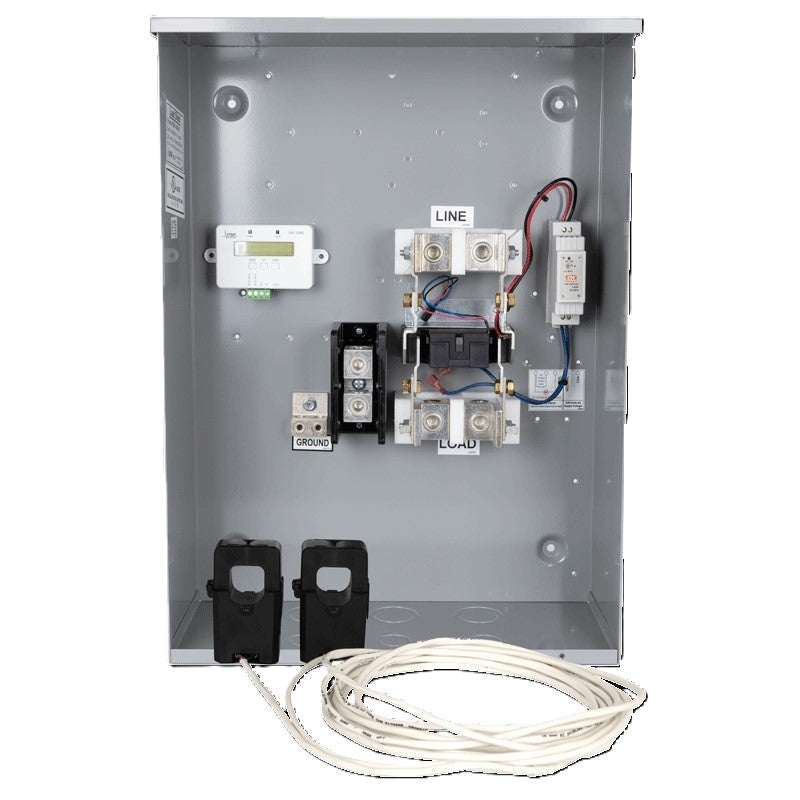

SAK-200MS-M
Max 400A | Max 200A Load
NEMA 3R
Save $171.00
Unit price /
Unavailable
SAK-200MS-M is backordered and will ship as soon as it is back in stock.
Shipping
Shipping
Free Shipping. Product built to order allow extra 7-10 days for processing.
Overview
Allows up to a single 200 amp load to be added to any main service panel or sub panel that is at risk of overload, or will become overloaded, when a new load is introduced.
The onboard intelligent micro-controller monitors the load on the existing panel and only allows the added load access to the panel when capacity is available. Installation requires an open 200A breaker.
Can be used in single phase commercial applications.
Charging Reference Table
| EV Charger Amps | EV Charger Output | Minimum Breaker | Full Charge | Driving Range Added Per Hour |
|---|---|---|---|---|
| 16 Amps | 3.8 kW | 20 Amps | 16 to 23 hours | 11 to 13 miles |
| 24 Amps | 5.8 kW | 30 Amps | 10 to 16 hours | 17 to 19 miles |
| 32 Amps | 7.7 kW | 40 Amps | 8 to 12 hours | 22 to 25 miles |
| 40 Amps | 9.6 kW | 50 Amps | 6 to 9 hours | 26 to 28 miles |
| 48 Amps | 11.5 kW | 60 Amps | 5 to 8 hours | 28 to 30 miles |
| 50 Amps | 12.0 kW | 80 Amps | 5 to 8 hours | 28 to 31 miles |
