DCC-9-BOX6
Enclosure Only
NEMA 1
DCC-9-BOX6 is backordered and will ship as soon as it is back in stock.
Shipping
Shipping
Free Shipping
Overview

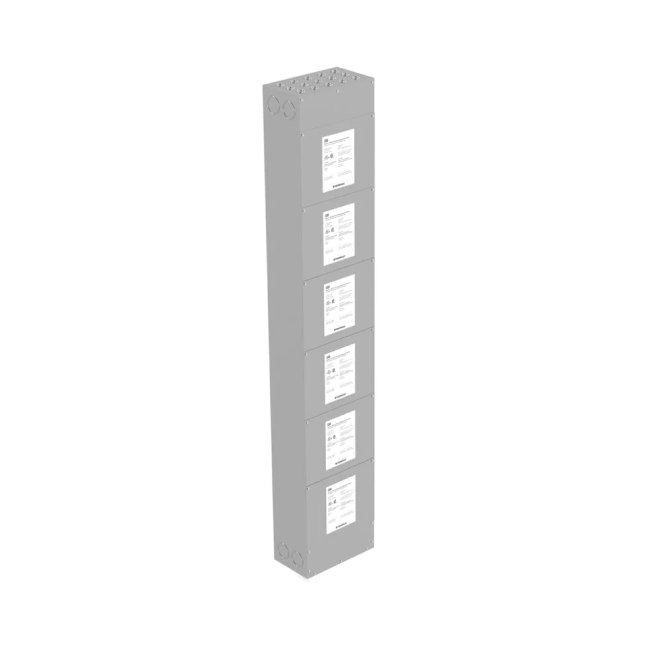

DCC-9-BOX6 is a stack of 6 indoor splitter boxes.
Specifically designed to make a building’s electrical infrastructures fully ready for electric vehicles at the lowest possible price.
Each DCC-BOX6 model can be supplemented to allow connection of an EV charger by adding the DCC-9-PCB electronic infrastructure.

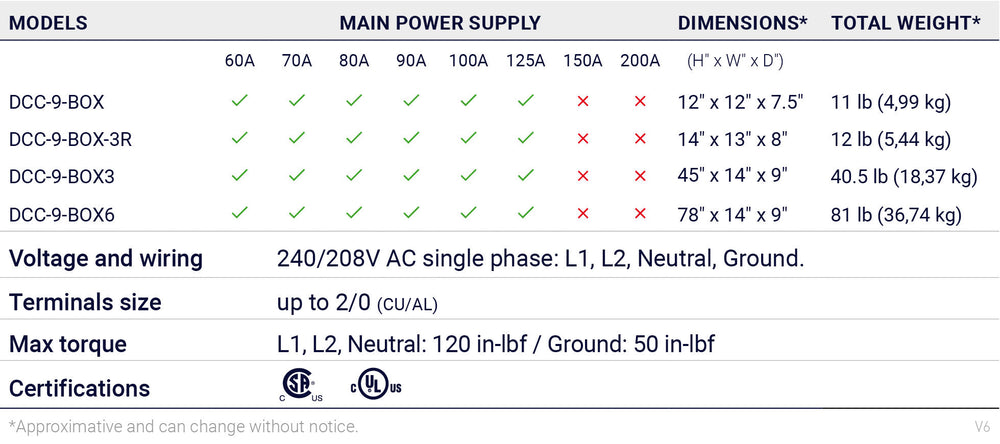

The DCC-9-BOX6 can be powered by a 240/208V AC single phase source, max 125A.
INSTALLATION CONTEXTS AND ADVANTAGES
- Simplifies large-scale installations
- Allows to save space and organize cable installation
- Allows for a more ergonomic installation for the installer and minimizes the footprint
INCLUDED
- Splitter Boxes (Max 125A)
COMPATIBILITY
- DCC-9-PCB-30A
- DCC-9-PCB-40A
- DCC-9-PCB-50A
- DCC-9-PCB-60A
Gen-3 of the DCC-9 has the ability to receive and transmit load shedding instructions from an external energy management system via a dry contact input and output.
Charging Reference Table
| EV Charger Amps | EV Charger Output | Minimum Breaker | Full Charge | Driving Range Added Per Hour |
|---|---|---|---|---|
| 16 Amps | 3.8 kW | 20 Amps | 16 to 23 hours | 11 to 13 miles |
| 24 Amps | 5.8 kW | 30 Amps | 10 to 16 hours | 17 to 19 miles |
| 32 Amps | 7.7 kW | 40 Amps | 8 to 12 hours | 22 to 25 miles |
| 40 Amps | 9.6 kW | 50 Amps | 6 to 9 hours | 26 to 28 miles |
| 48 Amps | 11.5 kW | 60 Amps | 5 to 8 hours | 28 to 30 miles |
| 50 Amps | 12.0 kW | 80 Amps | 5 to 8 hours | 28 to 31 miles |
