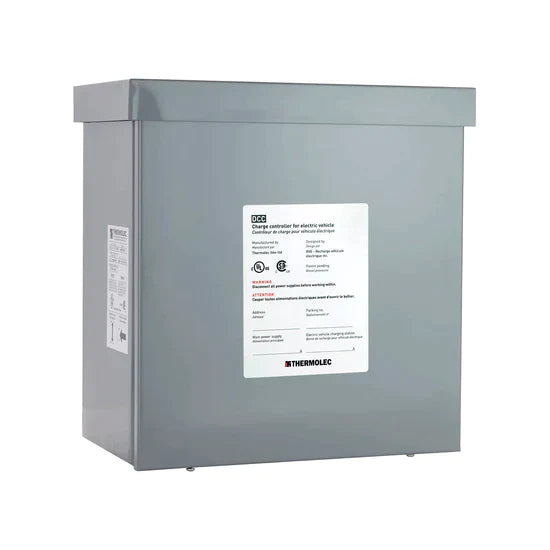

DCC-9-3R

Overview

DCC-9 is an EV Energy Management System, specifically designed to allow the connection of a charger to the main feeder of a panel without affecting the load calculation.

DCC-9 is proudly manufactured in Canada by Thermolec.

OPERATIONS

• Real-time reading of the total power consumption of a panel with pre-wired current transformers (CT)
• Detects when the total power consumption exceeds 80% of a main circuit breaker capacity and temporarily de-energizes the charger
• Automatically re-energizes the charger when the total power consumption of the main circuit breaker capacity is less than 80% for more than 15 minutes

FEATURES

• Ideal for when no additional breaker slots are available in a panel
• Does not affect the load calculation of a panel
• Automatic utility billing of electricity consumer (particularly important for condo installations)
• Can be mounted on the wall or ceiling
• Gen-3 of the DCC-9 has the ability to receive and transmit load shedding instructions from an external energy management system via a dry contact input and output

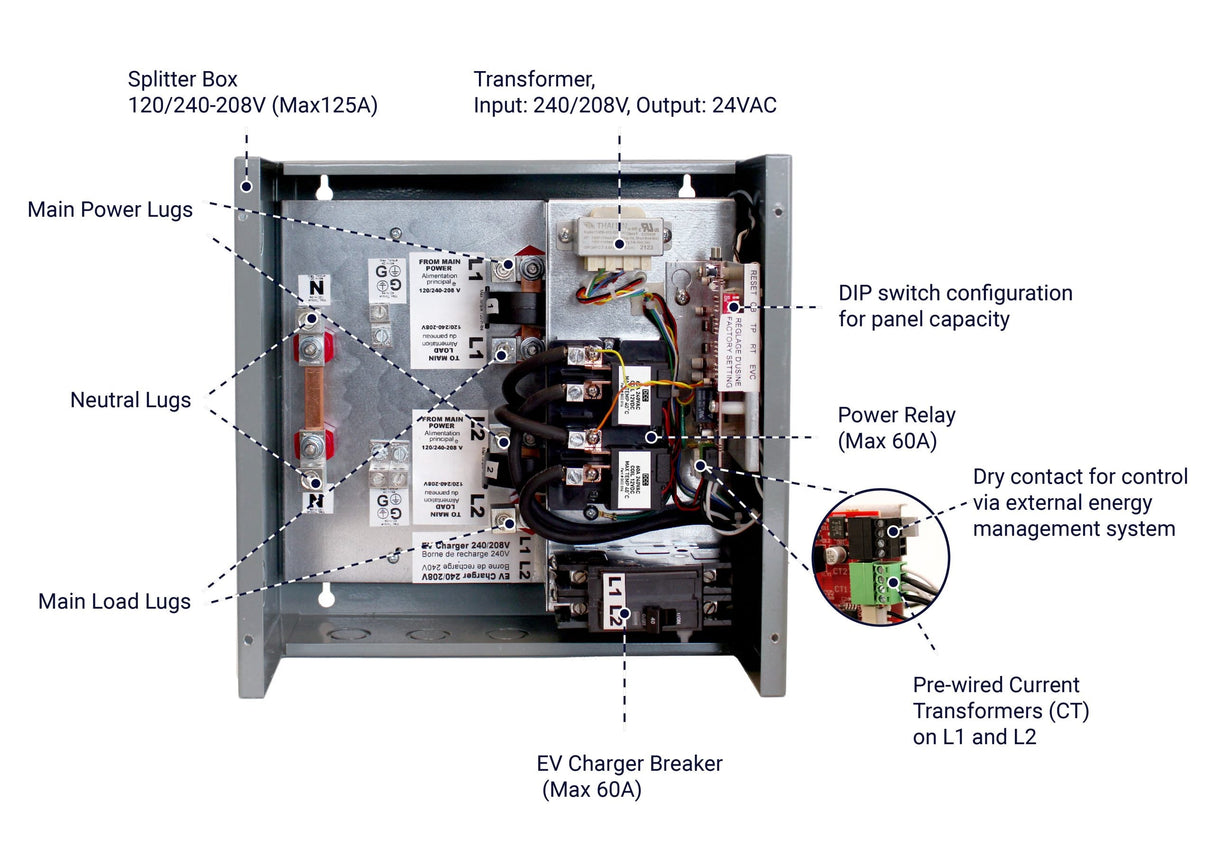

INCLUDED

• Charge Controller
• Splitter box (Max 125A)
• EV Charger Breaker (Max 60A)
• Pre-wired current transformers (CT)
