DCC
DCC-11-PCB
Max 200A; incl. 30-60A Breaker
Internal Part
Save $3,026.00
Unit price /
Unavailable
DCC-11-PCB - 30A (QOU230) is backordered and will ship as soon as it is back in stock.
Shipping
Shipping
Free Shipping
Overview

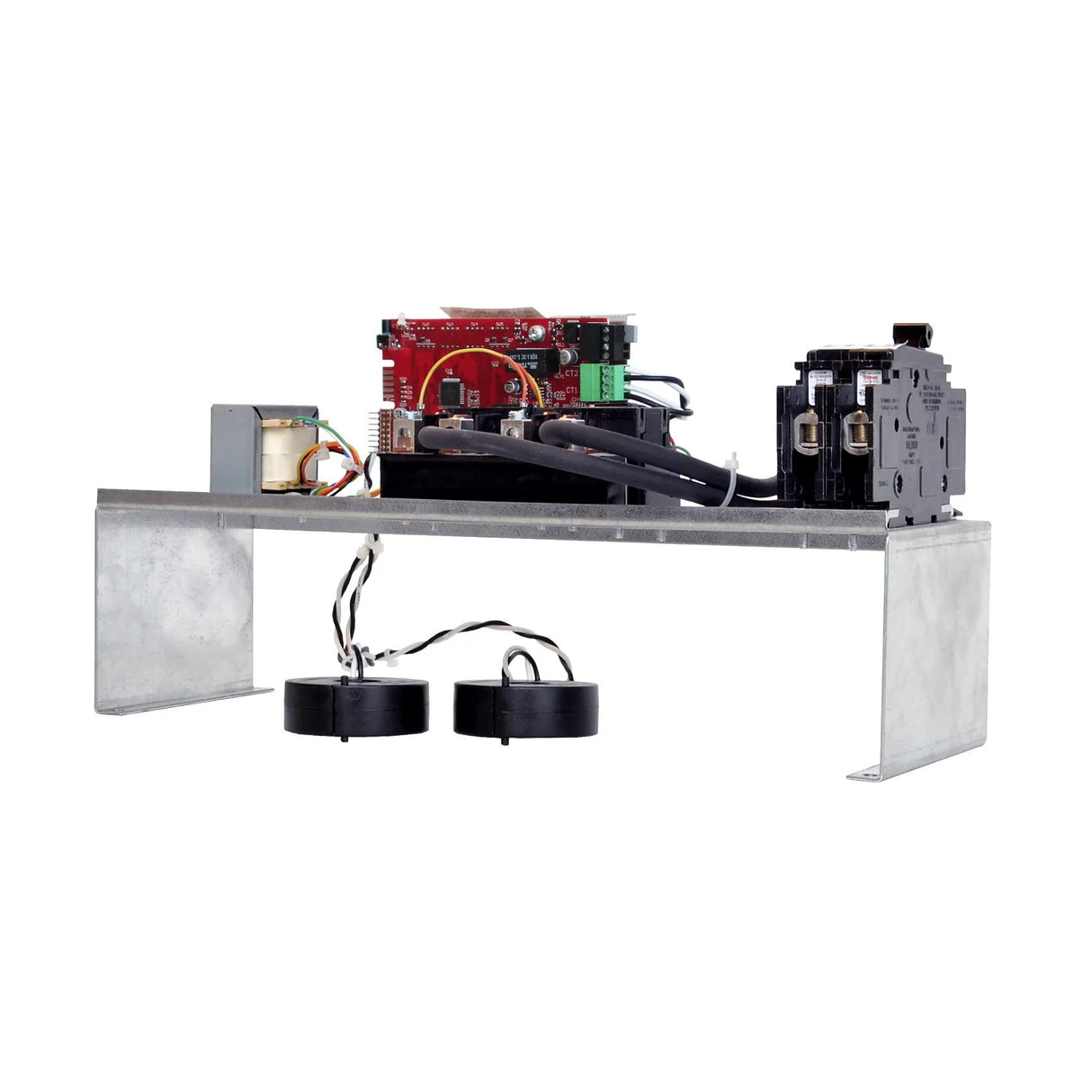

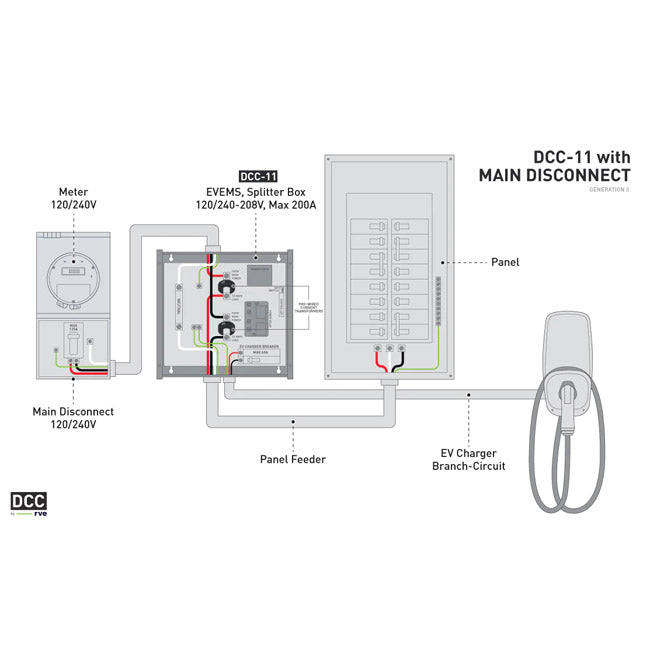

DCC-11-PCB is the electronic infrastructure that fits inside the DCC-11-BOX and allows the connection of an EV charger to the main feeder of a panel without affecting the load calculation.
DCC-11 is proudly manufactured in Canada by Thermolec.
- Real-time readings of the total power consumption of a unit’s panel
- Detects when total power consumption exceeds 80% of main circuit breaker capacity and temporarily de-energizes the EV charger
- Automatically re-energize the EV charger when the total power consumption is less than 80% of main circuit breaker capacity for more than 15 minutes
- Components needed to connect and power an EV charger
- Electronic Components
- EV Charger Breaker (Max 60A)
- 2 pre-wired Current Transformers (CT)
- 2 power Cables
Charging Reference Table
| EV Charger Amps | EV Charger Output | Minimum Breaker | Full Charge | Driving Range Added Per Hour |
|---|---|---|---|---|
| 16 Amps | 3.8 kW | 20 Amps | 16 to 23 hours | 11 to 13 miles |
| 24 Amps | 5.8 kW | 30 Amps | 10 to 16 hours | 17 to 19 miles |
| 32 Amps | 7.7 kW | 40 Amps | 8 to 12 hours | 22 to 25 miles |
| 40 Amps | 9.6 kW | 50 Amps | 6 to 9 hours | 26 to 28 miles |
| 48 Amps | 11.5 kW | 60 Amps | 5 to 8 hours | 28 to 30 miles |
| 50 Amps | 12.0 kW | 80 Amps | 5 to 8 hours | 28 to 31 miles |
